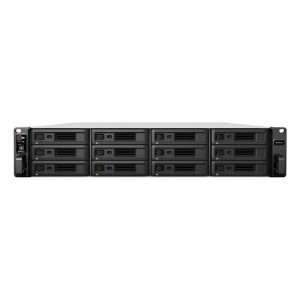

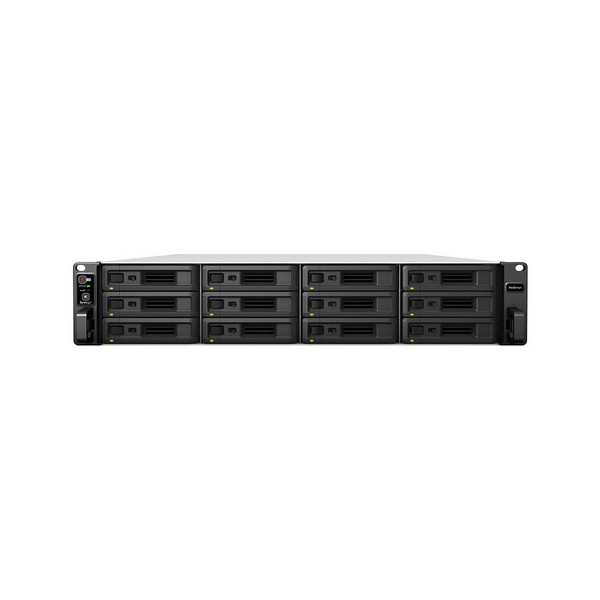

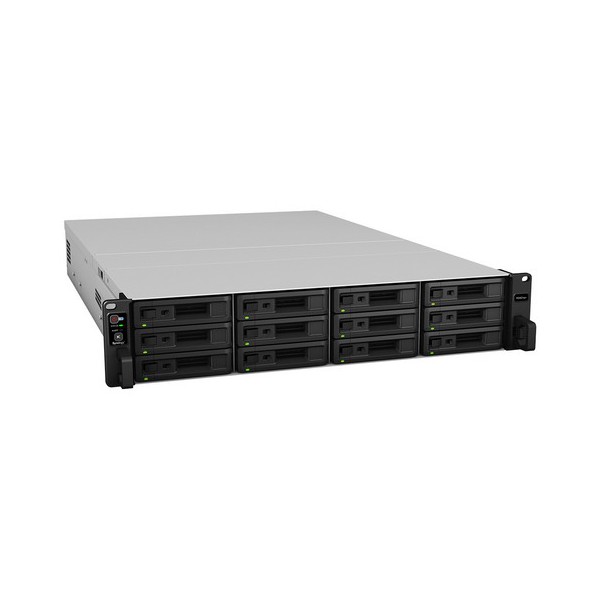

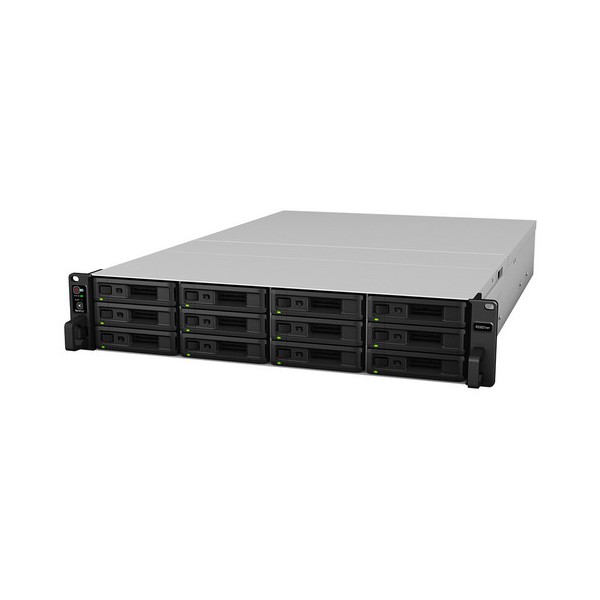

Synology 12-Bay Rackmount NAS
CPU : Intel Xeon D-1541 8-core 2.1 GHz (64-bit)
Memory : 8 GB DDR4 ECC (Up to 64 GB)
Drive Bay : 12 (Up to 36)
LAN Port : 2 x RJ-45 10GbE
LAN Port : 4 x RJ-45 1GbE
USB Port : 2 x USB 3.2 Gen 1
PCIe Expansion : 2 x Gen3 x8 slot
Redundant Power Supply
High-performance enterprise storage built for data accuracy and security.
The 12-bay RS3621xs+ is capable of delivering over 238K 4K random read IOPS and 5,819 MB/s sequential read throughput - a true enterprise powerhouse. With full power supply redundancy, an 8-core processor, ECC memory, advanced snapshot technology, and file self-healing, the RS3621xs+ provides a reliable foundation to any data-driven business.
Hardware Specification :
Synology RackStation RS3621xs+ 12-Bay Rackmount NAS
Synology NAS is shipped without hard drive & Rack Rail Kit
| CPU |
Intel Xeon D-1541 8-core 2.1 (base) / 2.7 (turbo) GHz Hardware Encryption Engine (AES-NI) |
| System Memory |
8 GB DDR4 ECC UDIMM (1 x 8GB) Memory Expandable up to 64 GB (16 GB x 4) |
| Drive Bays |
12 Drive Bays Hot Swappable Maximum Drive Bays with 36 Expansion Units |
| Compatible Drive Type |
3.5" SATA HDD 2.5" SATA HDD 2.5" SATA SSD (hard drives not included) |
| Supported RAID Type |
RAID F1 / Basic / JBOD / RAID 0 / RAID 1 / RAID 5 / RAID 6 / RAID 10 |
| External Ports |
RJ-45 10GbE LAN Port : 2 (with Link Aggregation / Failover support) RJ-45 1GbE LAN Port : 4 (with Link Aggregation / Failover support) USB 3.2 Gen 1 Port : 2 Expansion Port : 2 |
| PCIe Expansion |
2 x Gen3 x8 slots (x8 link) |
| Maximum IP cam |
90 (including 2 Free License) |
| Virtualization |
VMware vSphere with VAAI Windows Server 2016 Windows Server 2019 Citrix Ready OpenStack |
| Power Supply Unit | 2 X 500W |
| Size | 88 x 482 x 724 mm |
| Weight | 14.5 kg |
| Warranty | 5 year |
